GSA - Vistrak EVi Launch Monitor

Product Description

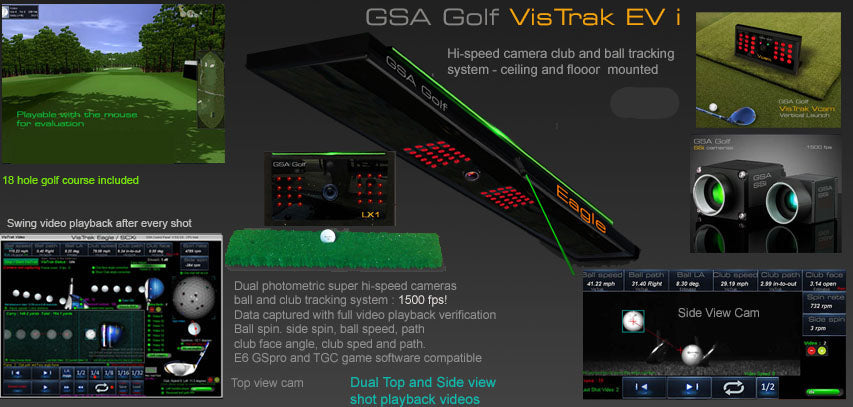

The Vistrak EVi is a dual-camera golf launch monitor system that combines the overhead-mounted Eagle Launch Monitor with the floor-mounted LX1 Monitor, offering complete data capture for both right- and left-handed golfers. Designed for high-performance accuracy, the system uses dual high-speed photometric cameras capturing data at up to 1500 frames per second. After every swing, you’ll get full video playback for instant feedback—including two separate 32-frame videos from both top and side angles, allowing you to clearly review club path and ball trajectory.

Compatible with popular simulation software such as E6, E6 Connect, TGC, and GSPro, the EVi does not require any additional subscription fees when using the included GSA software, which comes with one full 18-hole course. The system delivers over 16 precise club and ball data metrics and provides accurate results without the need for marked golf balls or club stickers. It even captures complete putting data for comprehensive analysis across your entire game.

Weighing only 6 pounds combined, the lightweight build of both units makes the overhead installation simple. The EVi can also be converted into a video swing capture system, adding even more versatility to your setup. The dimensions of the overhead Eagle IR unit are 3.5 inches in height, 10 inches in width, and 30 inches in length.

Product Features

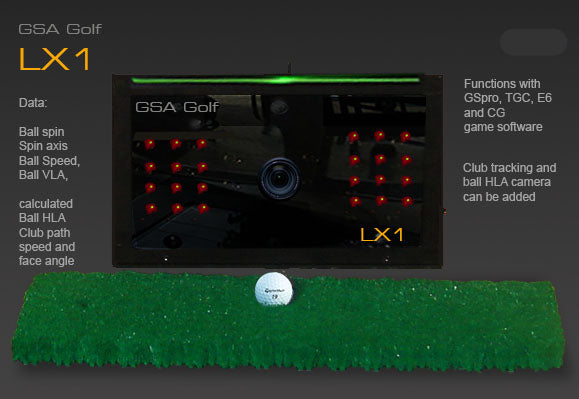

• Combines overhead-mounted Eagle Launch Monitor with floor-mounted LX1 Monitor

• Suitable for both right- and left-handed golfers

• Dual high-speed photometric cameras capture data at up to 1500 frames per second

• Provides video playback after every swing with two 32-frame videos (top and side views)

• Allows instant review of club path and ball trajectory

• Compatible with E6, E6 Connect, TGC, and GSPro simulation software

• No subscription fees required when using included GSA software

• GSA software includes one 18-hole golf course

• Measures over 16 club and ball data points with high accuracy

• Captures full putting data

• Does not require marked golf balls or club stickers

• Can be converted into a video swing capture system

Dimensions

• Lightweight design with a total system weight of 6 lbs

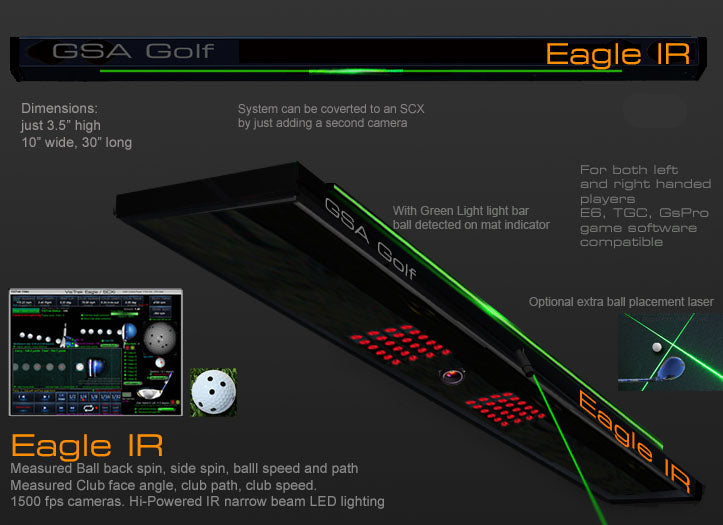

• Overhead Eagle IR unit dimensions: 3.5" (H) x 10" (W) x 30" (L)

• Easy to install in overhead setups

PC Requirements...

• Intel i5 processor or higher (AMD processors not supported)

• 8 GB RAM

• Nvidia 1070 graphics card or equivalent

• 25 GB of free hard drive space

• Windows 10 or 11

• Two USB 3.0 ports

• Internet connection required for E6, TGC, or GSPro software
